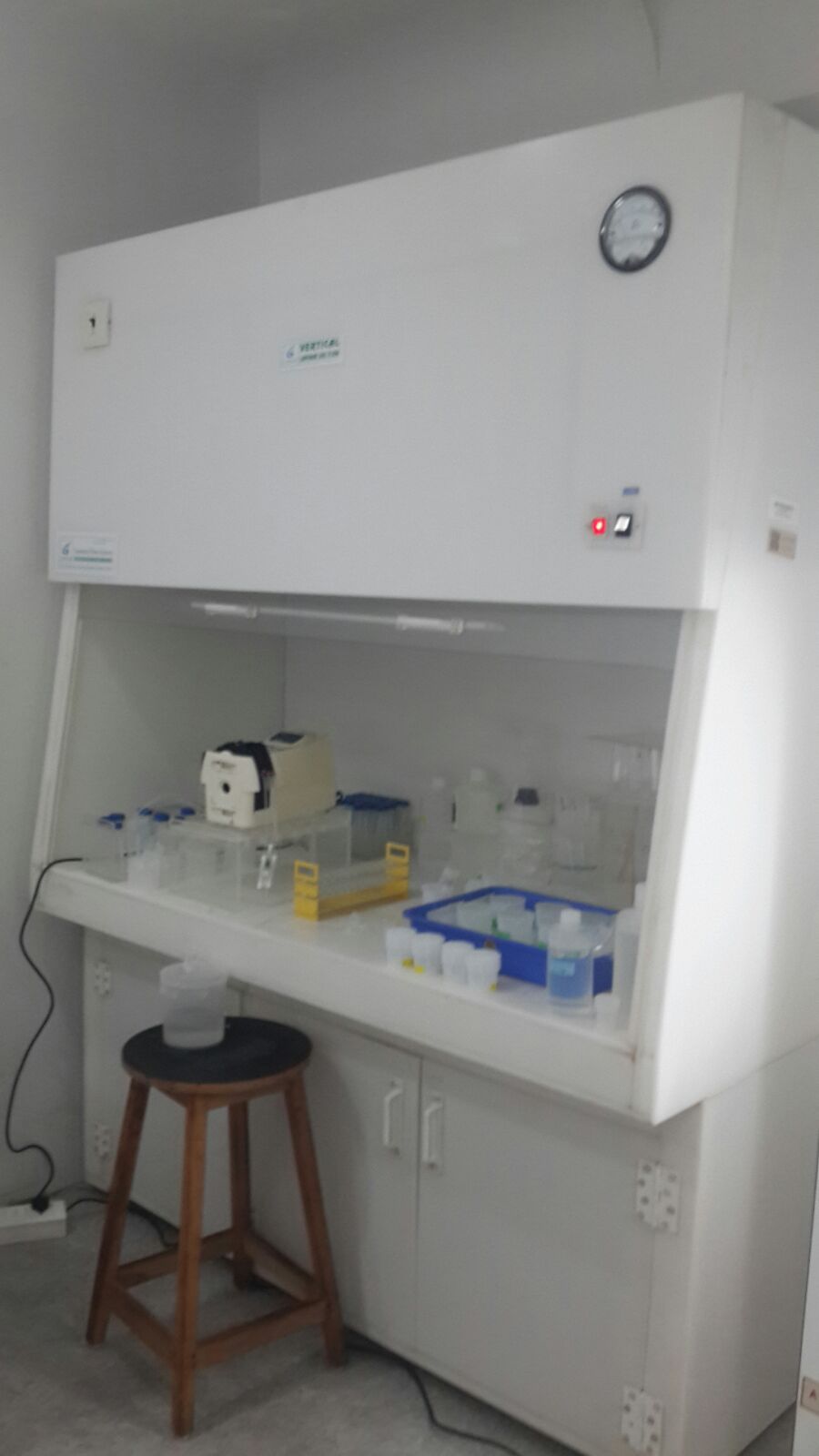

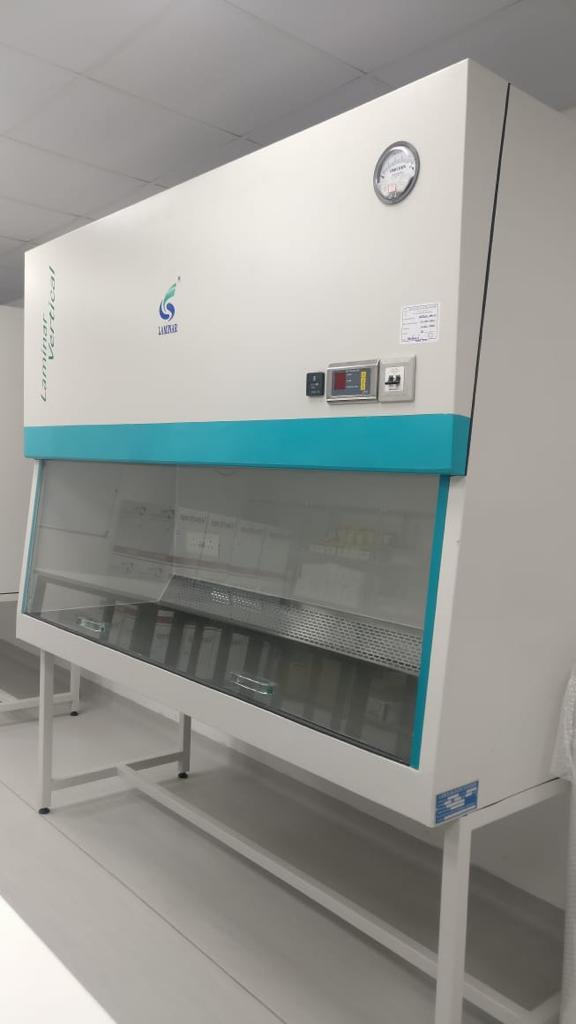

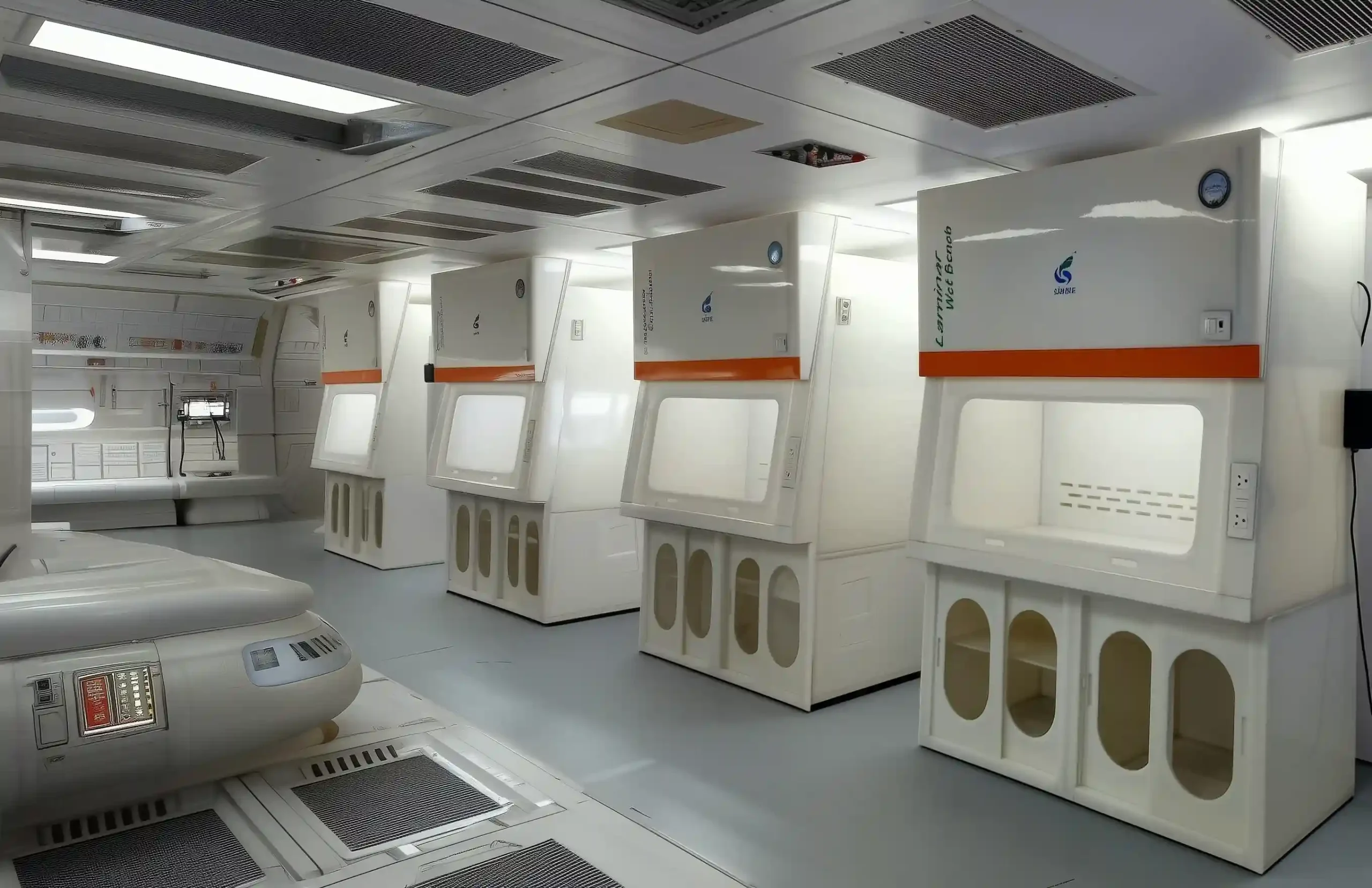

Vertical / Horizontal Laminar Flow
We manufactures both Horizontal /Vertical modules for both customized & standard sizes. We use high quality filter for providing a sterile working environment for various cultures like tissue, cell and etc. allied biotechnology applications. Our equipments are especially useful in Microbiology, Health Care industry, Electronics, Semi-Conductors Plant tissue culture and Animal cell culture, labs for Molecular biology, Immunology and etc.
Specifications:
| Body | CRCA powder coated/ SS 304 |
| Blower (AHU) | 1400rpm, 1Ø, ¼ Hp, Dynamically and statically balanced |
| Filters | HEPA – 0.3 microns, 99.97% efficiency, micro glass fiber media (imported) |
| Pre – 10/5 micron, 99% efficiency, non-woven synthetic fiber media | |
| Front Sash | Sliding sash of Toughened/ Plexi glass with counter weights. |
| Tabletop | SS 316 |
| Protective grills | CRCA Powder Coated/ SS 304 with maximum open area. |
| Flow | Vertical/Horizontal |
| Manometer | Provided to check the pressure drop across the filters. |
| Lighting | Fluorescent lighting |
| Electrical | 220 Volts, 1Ø, 50Hz, with 2 nos. of 5amp. switch socket (Combined) |
| Velocity | 90 + 20fpm |
| Leveling jacks | Positioning and leveling the equipment |
| Cleanliness | LF V/ H models exceed CLASS-100 (US federal Standard 209 E and ISO-Std. 14644-1). |
| Optional | UV, Front Sash, SS Tabletop, Gas Cock, Magnehelic Gauge, Castor Wheels |
Sizes:
| Models | Internal | External (Overall Size) |
|---|---|---|
| Vertical | ||
| LFV– 600 | 2’W x 2’D x 2’H | 2’.3”W x 2’.3”D x 7½’H |
| LFV – 900 | 3’W x 2’D x 2’H | 3’.3”W x 2’.3”D x 7½’H |
| LFV– 1200 | 4’W x 2’D x 2’H | 4’.3”W x 2’.3”D x 7½’H |
| LFV – 1500 | 5’W x 2’D x 2’H | 5’.3”W x 2’.3”D x 7½’H |
| LFV – 1800 | 6’W x 2’D x 2’H | 6’.3”W x 2’.3”D x 7½’H |
| Horizontal | ||
| LFH– 600 | 2’W x 2’D x 2’H | 2’.3”W x 2’.3”D x 5’H |
| LFH– 900 | 3’W x 2’D x 2’H | 3’.3”W x 2’.3”D x 5’H |
| LFH – 1200 | 4’W x 2’D x 2’H | 4’.3”W x 2’.3”D x 5’H |
| LFH – 1500 | 5’W x 2’D x 2’H | 5’.3”W x 2’.3”D x 5’H |
| LFH – 1800 | 6’W x 2’D x 2’H | 6’.3”W x 2’.3”D x 5’H |
