Pass Through Box

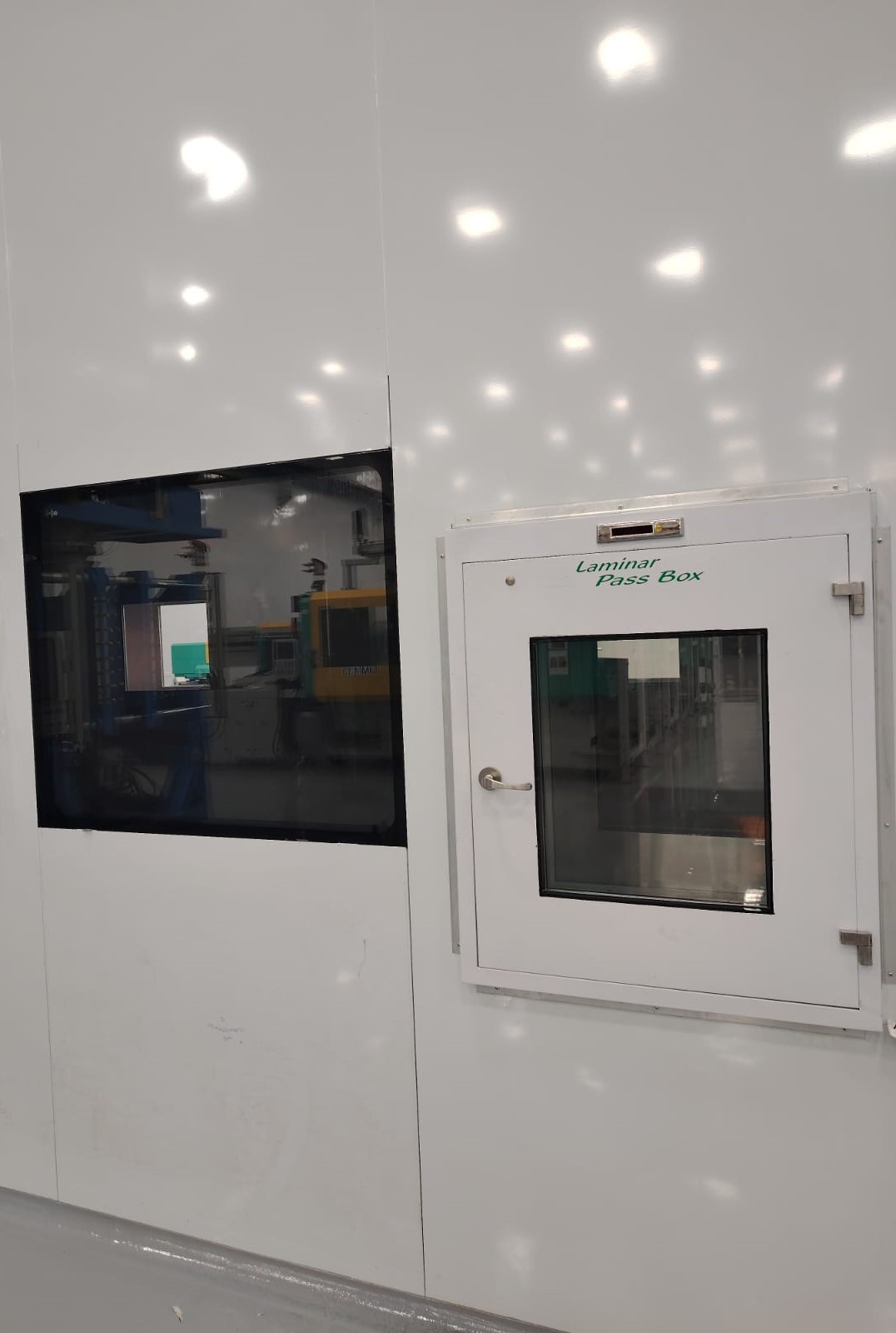

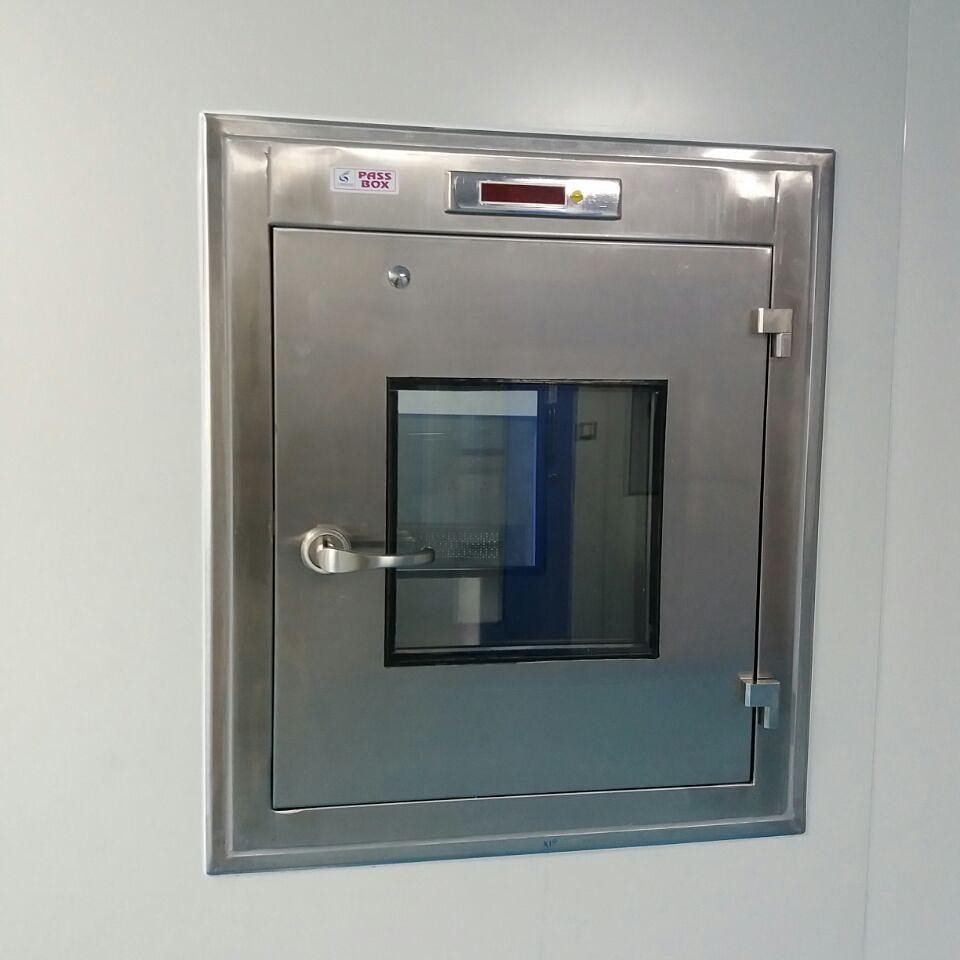

Clean room pass box is a customized design unit for easy access between the clean room and non-clean areas. These are essential for maximum protection against outer contamination on Object passed into the clean room. We have various designs to meet demands of the customer whether it may be active or otherwise
Our Clean Room Pass Boxes are completely assembled and ready for installation constructed out of SS-304/SS-316/CRCA powder coated to meet the demands of various customer with acrylic doors, door gaskets, mounting flanges and magnetic logical doors.
Specifications:
| Body | CRCA powder coated/ SS 304 |
| Doors | Automatic- magnetic interlocking & hinged Nuwood-Laminated/ CRCA powder coated/ SS 304/ 316 doors with acrylic view port and handles. |
| Lighting | Diffused Fluorescent lighting/ UV (Optional) |
| Electrical | 220 Volts, Single Phase neutral 50Hz, 230/12v DC transformer, Micro Switches, 2-way Rocker Switches. |
| Options | Dynamic Pass Box: HEPA filter, blower with re-circulatory, Ductable Pass Box: HEPA filter and duct provision. |
Sizes:
| Internal | External (Overall Size)> |
|---|---|
| 2’W x 2’D x 2’H | 2’. 4”W x 2’D x 2’. 4”H |
| 2½’W x 2½’D x 2’H | 2’. 10”W x 2½’D x 2’. 4”H |
| 3’W x 2½’D x 3’H | 3’. 4”W x 2½’D x 3’. 4”H |
| Products are customizable according to requirements | |
