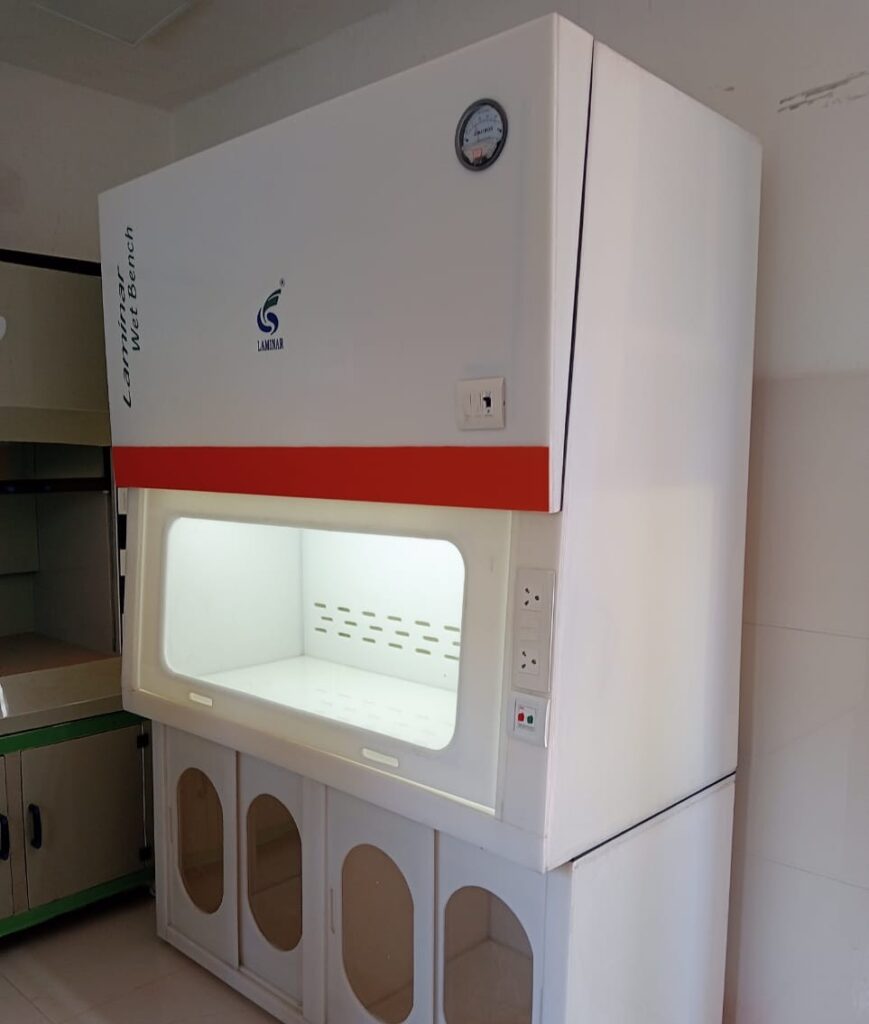

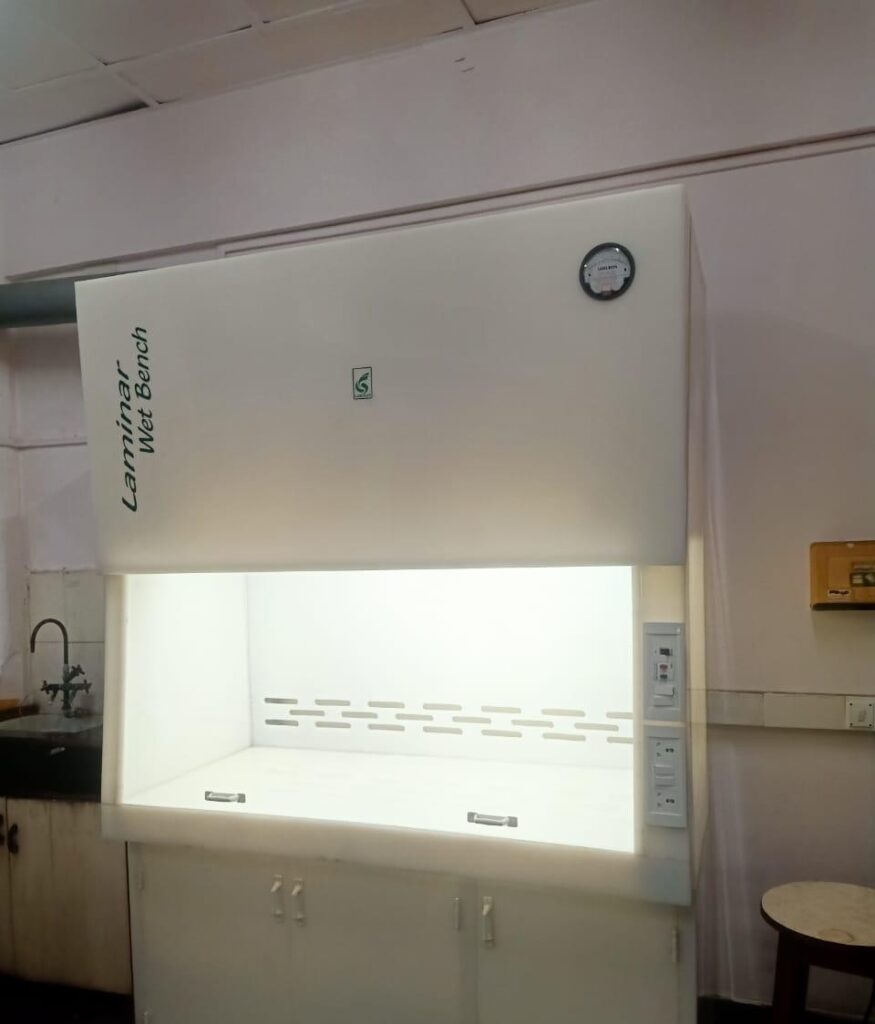

Laminar Flow Chamber With Fume Hood (Wet Bench)

We manufactures both Fume Hoods /Vertical laminar modules for both customized & standard sizes. We use high quality filter for providing a sterile working environment for various cultures like tissue, cell and etc. allied biotechnology applications. And for extract we will provide outdoor FRP blower with motor with low noise & vibration. Our equipments are especially useful in Microbiology, Health Care industry, Electronics, Semi-Conductors Plant tissue culture and Animal cell culture, labs for Molecular biology, Immunology and etc.

Specifications:

Body	Designed to provide the highest level of protection and containment against highly corrosive acids. Made of highest quality corrosive resistant polypropylene (PP) with 8-10mm thickness. Proper non-corrosive cabinets would be provided below the working table for the storage of acids. There will be no perforation on the bottom work bench. The bottom work bench will be supported by PP ribs to avoid any sagging.
Blower	Exhaust blower having a capacity of 600-800 cfm (4 ft) with induction motor more than 1.5 HP, 3 Phase. Exhaust will be made at the rear of the bench and connected with the vent to throw the air out of the room. Exhaust ducting made of PVC 2-3 mm thick, 8 inches diameter up to 6 m from the equipment. The exhaust ducting will have minimum number of bents with position of tapering and back flow siphoning.
Filtration System	The filtration system is fitted with PTFE U15 ULPA filters, which is made of non-glass fiber. The filter frame is made be made of PVC. No metal mesh is present in the filter. Filtration system will have multiple stages with HEPA filter that can block the particles with sizes more than 0.3 microns. Filtration system will have low vibration and noise level. Filter efficiency will be more than 99.9%.
Front Sash	Pully based-sash made of transparent acrylic sheet (6-10 mm thickness) to ensure smooth operation and longevity. Provision for height adjustment at every six inches interval. A one inch thick lip at the front is provided for efficient height adjustment of the sash.
Tabletop Thick	PP Table Top 20mm, Back wall will have exhaust holes of about 12-16 inches diameter
Pressure Gauge	Magnehelic Gauge 0-25mm WC, to check the pressure drop across the filters.
Lighting	LED lighting with control switch.
Electrical Switch	230 Volts, 1Ø, 50Hz, with 2 nos. of 5/15 amp. Switch socket (Combined) Velocity 90 ± 20fmp. All the wiring and electrical connections would be double insulated.
Noise level	65 Decibel on “A” scale ± 5.
Cleanliness	ISO Class 5 as per ISO 14644-1.
