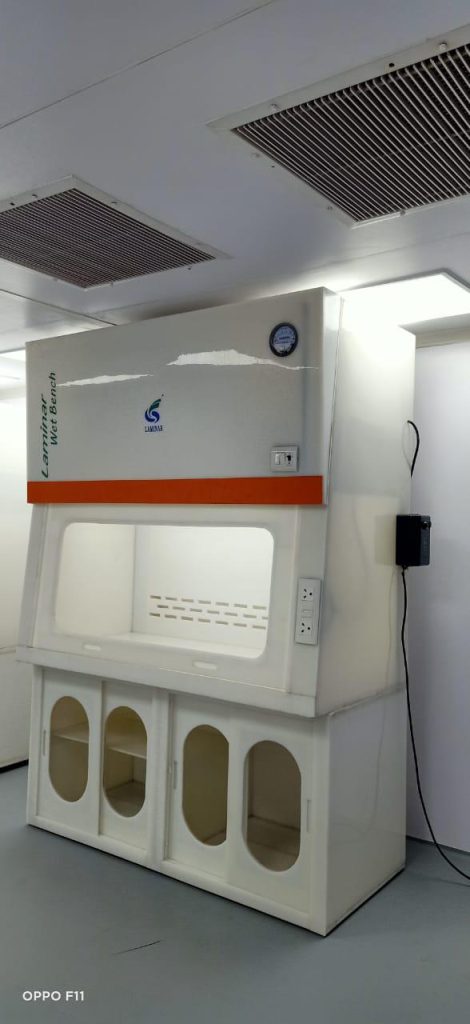

Exhaust Fume Hood / Wet Bench
Fume Hoods are designed to meet the standards for environment, health, and safety of persons working in laboratories and other application areas. We lay a careful emphasis on the principle that Mechanical ventilation shall have the capacity to offset the exhaust of the fumes.

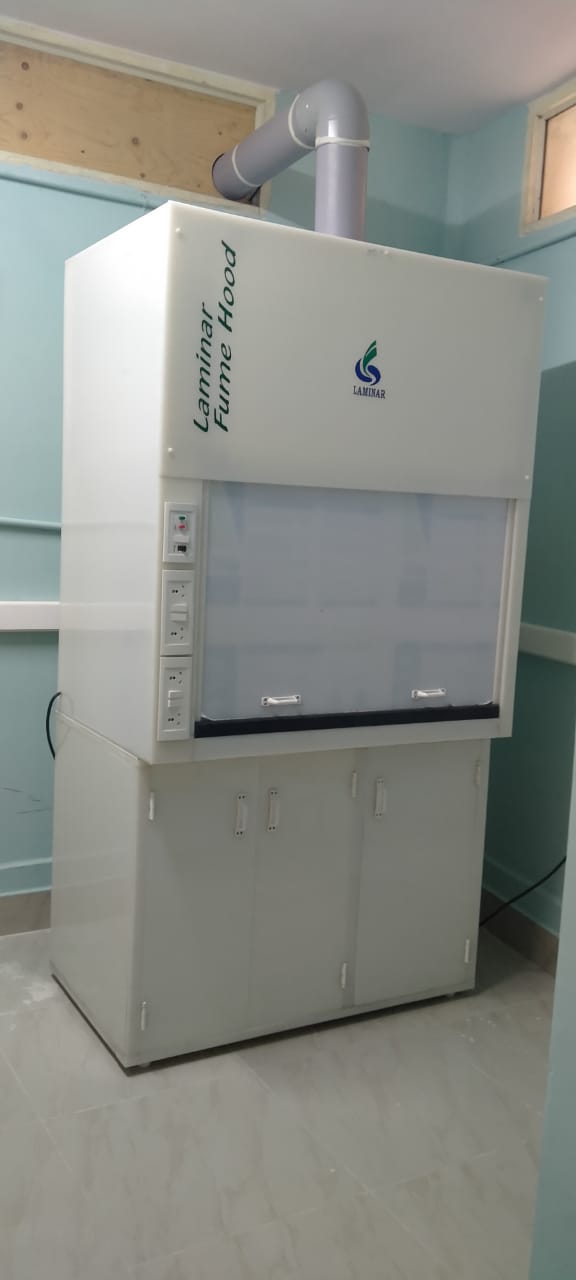

The chemical laboratory fume hood is a partially enclosed workspace that limits the spread of fume to operators and other personnel. It is ventilated by induced flow of air through an adjustable working aperture that dilutes the fume and by mean of an extract system, provides for the release of fume remotely and safely. It is to be used with all standard laboratory chemicals. Such as acid, basis, alcohols, solvents etc..
Specifications:
| Body | SS 304 / PP paneling. Partition structure – Aluminum/ CRCA sections (powder coated) With base stand or Cupboard |
| Safety Baffles | PP lining. Reduces the static pressure and the friction. Toxic fumes and contamination directed away from the operator. |
| EXHAUST | Blower – PP/ FRP Motor – 1440 RPM, Single/ Three Phase. Duct – PVC duct |
| Front Sash | Sliding sash of Toughened/ Plexi glass with counter weights. |
| Tabletop | Granite/ PP/ SS 316 with sink provision. |
| Sink | Ceramic/ PP/ SS 316 |
| Lighting | Diffused Fluorescent lighting |
| Electricals | 220 volts, single- phase 50Hz input Blower Assembly provided. |
Sizes:
| Models | Internal | External (Overall Size) |
|---|---|---|
| LFH – 1200 | 4’W x 2’D x 2’H | 4’.3”W x 2½’D x 7½’H |
| LFH – 1800 | 6’W x 2½’D x 2½’H | 6’.3”W x 3’D x 7½’H |
| LFH – 2400 | 8’W x 2½’D x 2½’H | 8’.3”W x 3’D x 7½’H |
| Equipped with suitable exhaust assembly and PVC/ FRP ducting up to 20 feet length. | ||
| Products are customizable according to requirements | ||
