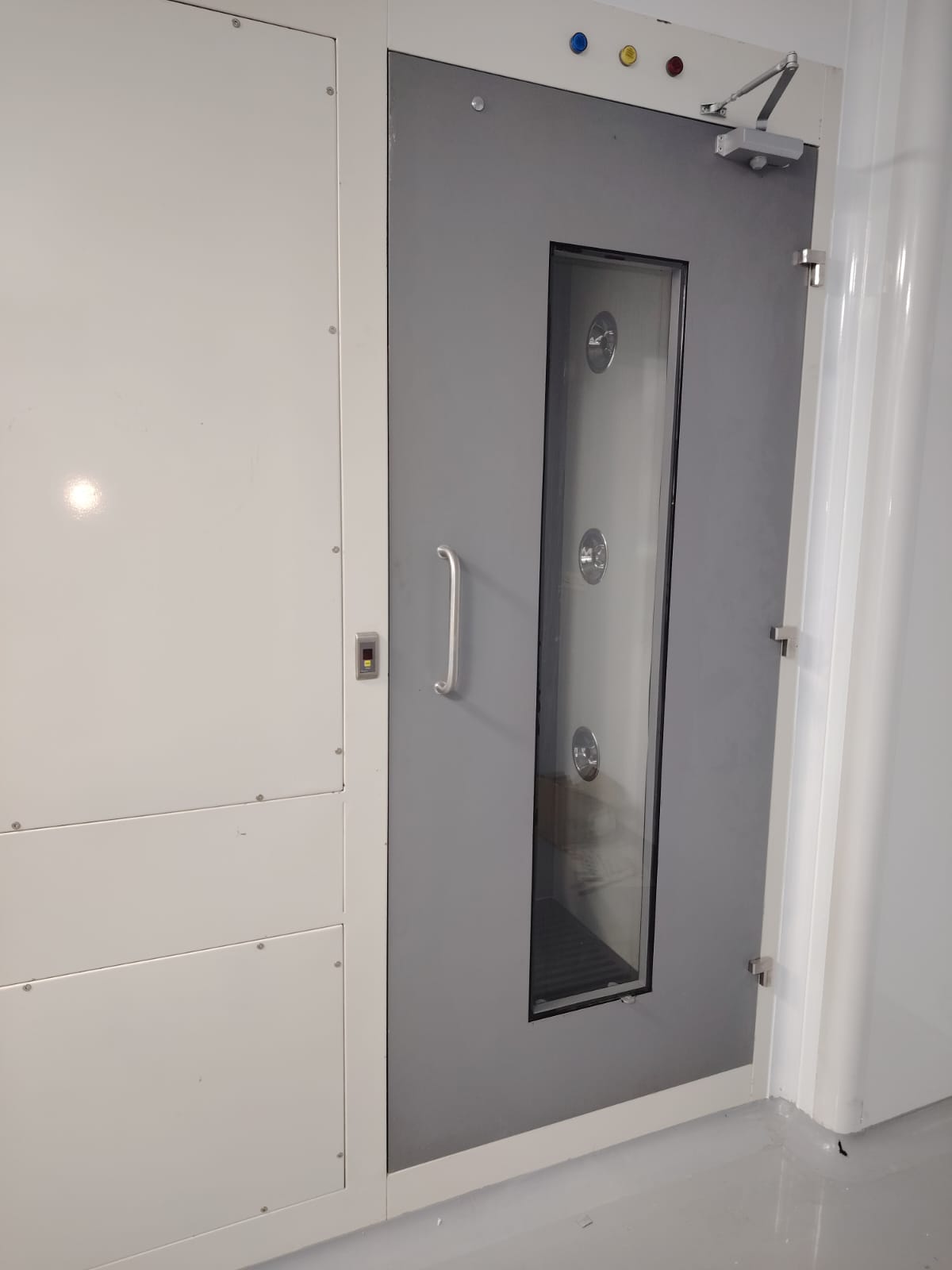

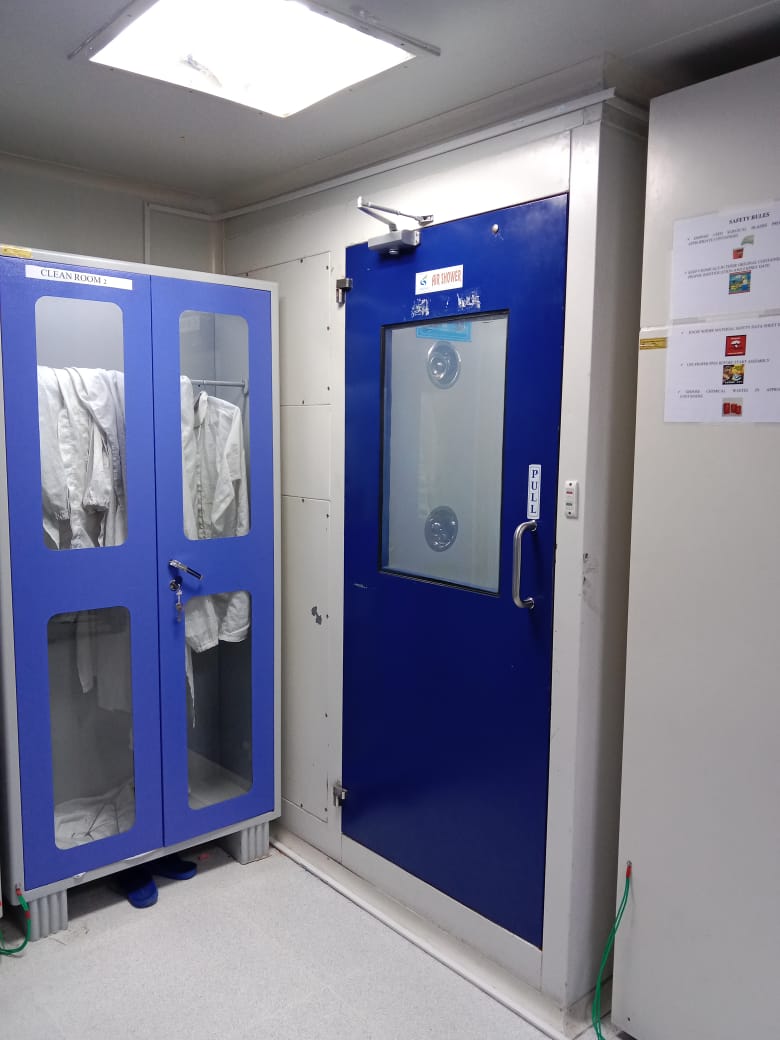

Air Shower
Air showers are designed to produce a high velocity Air Shower for bathing the personnel entering the clean room to minimize the personnel contamination like surface lint & dust from garments & human hair and to maintain the cleanliness of the clean room environment in its real sense. Other features include interlocking of doors, shower time adjustment, panic switch etc. Units are available to provide air shower to 1 to 4 persons at time and also, we are make as per your specifications.
Specifications:
| Body | CRCA powder coated/ SS 304. |
| Doors | Heavy duty Powder Coated Aluminum Glazed doors with 5mm Glass. |
| Blower (AHU) | 440v, 3Ø, 2800rpm, 1.1kw Dynamically balanced air-handling unit. |
| Filters | HEPA – 0.3 microns, 99.97% efficiency, micro glass fiber media (imported) |
| Pre – 10/5 micron, 99% efficiency, non-woven synthetic fiber media | |
| Lighting | Diffused Fluorescent lighting, |
| Electricals | 440 Volts, Three Phase neutral 50Hz |
| Logic Controls: | Automatic logic controls adjustable time cycle(15 to120 sec.) interlocking of doors manually operable during shower cycle; Panic switch for emergency switch off. |

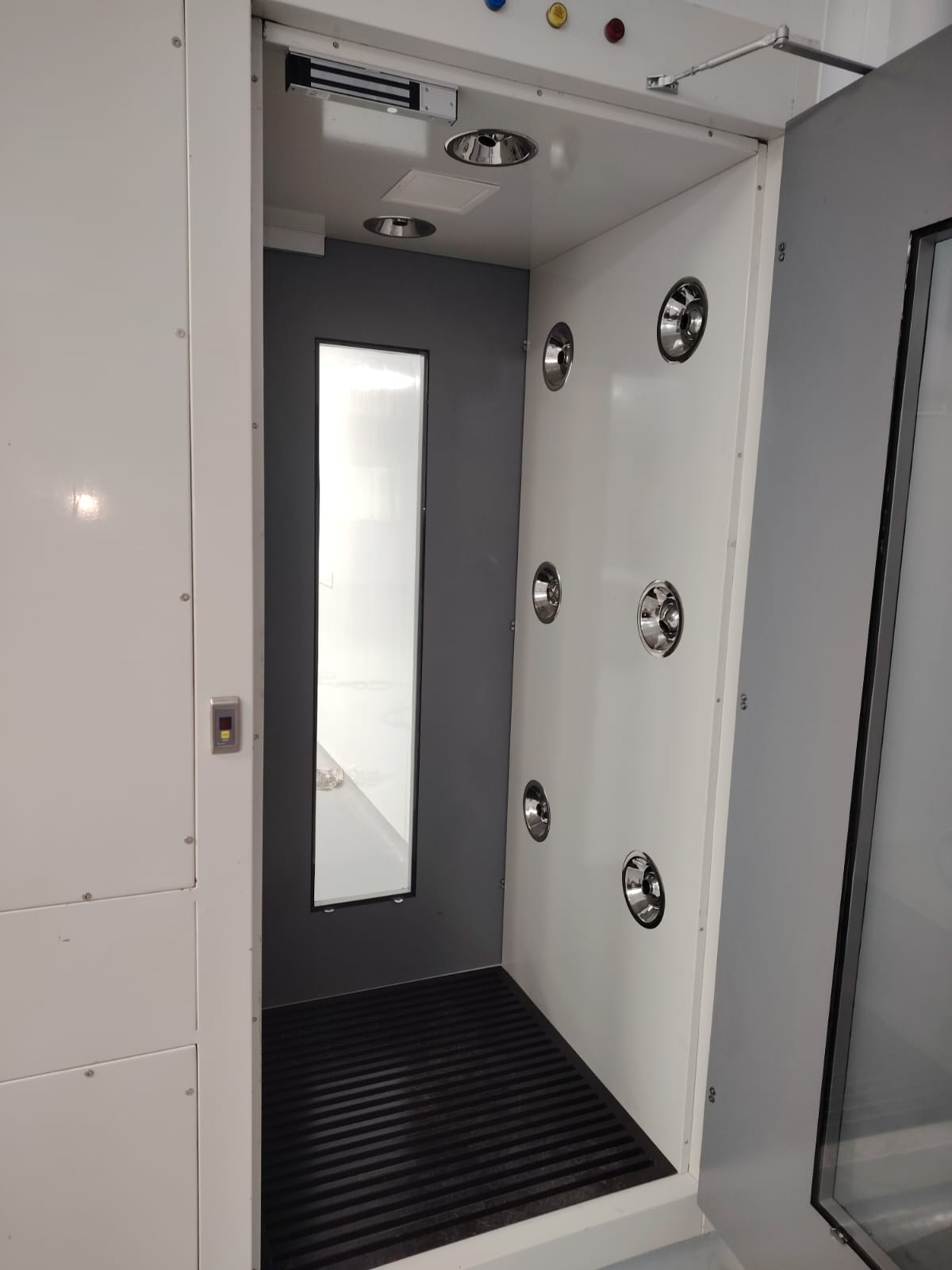

| Nozzle: | Suitable fabricator/die caster stainless steel/ PP nozzles |
| Velocity | 24-30m/ sec |
| Noise level | Less than 65 db on ‘A’ scale |
| Floor | Grated Flooring with prefilter |
| Leveling jacks | Positioning and leveling the equipment |
| Cleanliness | LF- AS models exceed CLASS-100 (US federal Standard 209 E and ISO-Std. 14644-1). |
Sizes:
| Models | Shower Area | External (Overall Size) |
|---|---|---|
| LF – AS – 900 | 2½’W x 3’D x 6½’H | 5’W x 3’.4”D x 8’H |
| LF – AS – 1800 | 2½’W x 6’D x 6½’H | 5’W x 6’.4”D x 8’H |
| The dimensions provided are with blower and filter on the side. The same can be provided on the top if site so demands. The above air showers are straight through entries however, optionally they can be in ‘L’- shaped or ‘T’ – shaped(Single entry – double exit) | ||
